*astTECS SIP Gateway gives the freedom to connect any enterprise telephony equipment to any internet based next generation network

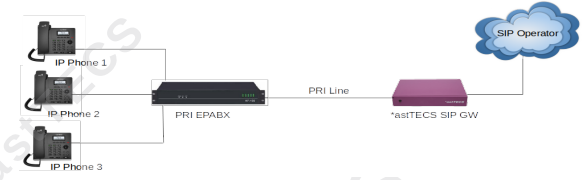

With the integrated E1/T1 interfaces and the E-SBC functionality the *astTECS SIP Gateway is the ideal demarcation point for the interface between the enterprise and the network for existing and new technologies.
Using a high precise 5ppm clock and multiple CODECS for voice and fax ensures full ISDN quality. With the integrated header and routing manipulation capabilities a smooth migration for all enterprise equipment and network requirement is guaranteed.
SOLUCTION
Processor: Quad-core 1 GHz, 1 Gbyte RAM, 8 Gbyte Flash RAM. Ethernet: 10/100 Mbit/s, WLAN, VLAN ISDN: E1/T1, High precise 5ppm clock, TE/NT mode, CRC4/ double frame mode
ISDN: DSS1, Q.931, SS7, ISDN supplementary service VoIP: SIP (RFC3261ff), G.711, G.729, G.726, Fax: T.38 & G.711, Clear Channel
Ethernet: 2 x 10/100 Base-T RJ-45, WLAN, 802.11 b/g/n ISDN: 2 x E1/T1 Interface high precise 5ppm clock Power: 100-240 VAC, 10W, External water supply, Low power consumption (<4kW)
Size (WxHxD): 144 x 42 x 94
Weight: 0.3 Kg
Material: ABS
Mounting: Desktop, Wall Mountable
Temperature: 5°C to 40°C
Humidity: 5% to 80% (non-condensing)
Certifications: EMC, Safety, CE
| Model | E1 | Concurrent Calls |
|---|---|---|
| *ast SIP 30 | 1 | 30 |
| *ast SIP 60 | 2 | 60 |
